Embroidery Machines

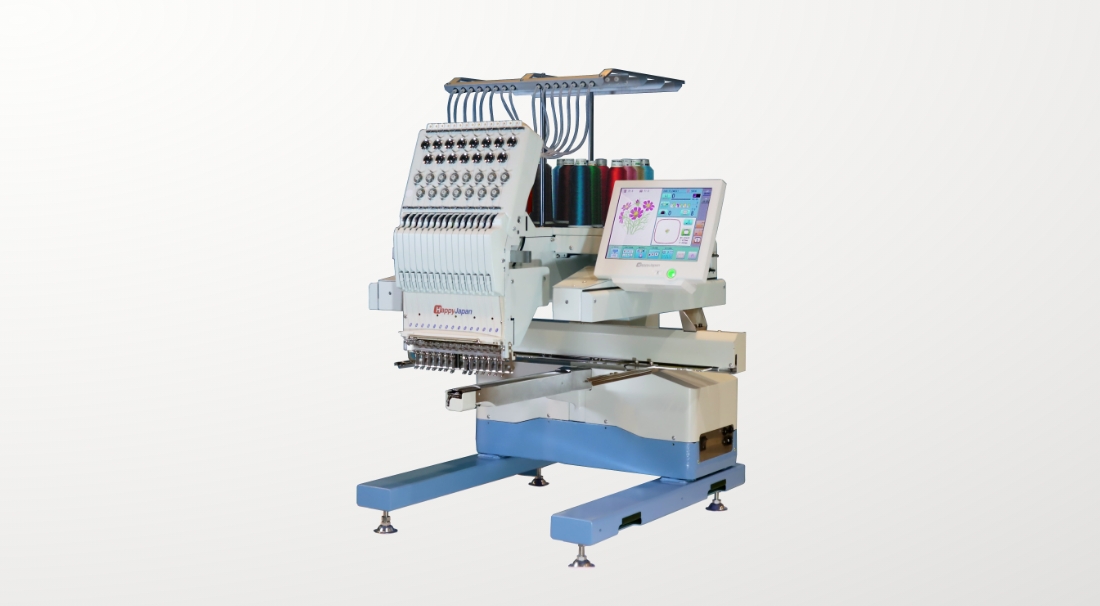

HCU-1501-40 (Heavy-duty Industrial)
Finest industrial single-head model in pursuit of functionality and productivity .
HCU is the ultimate version of HappyJapan’s 15 needle embroidery machine with the highest operating speed of 1500rpm, the largest sewing field and many more features to enhance productivity.
Introduction Movie
Specification
| Number of Needle | 15 |
|---|---|
| Number of Head | 1 |
| Maximum Speed: Tubular | 1,500rpm |
| Maximum Speed: Cap | 1,200rpm |
| Maximum Embroidery Field (X-Y) | 400 x 600mm / Option: 400 x 1,200mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 40milion stitches / 999 designs |
| Power Supply | Single phase 100-120 200-240V |
General Features
| Automatic Thread Trimer | Yes |
|---|---|
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Option |
| LCD Touch Screen Control Panel | 7 inch / Option: 10.4 inch |
| Laser Position Marker | Option: Cross marker / Dot Pointer |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
New Features
Automatic Material Thickness Detection System
An Automatic Material Thickness Detection System is new standard function of HCU. This new function can suppress foot thumps much less than ever because HCU automatically senses a thickness of a material cloth and can adjust by itself.
Digital Controlling System
HCU’s digital controlling system uses a pressure foot enabling a height adjustment by the touch control panel. HCU’s individual driving system for foot movements.
Options
- Center Cross Marker
- Laser marker which points from directly above
- Side-mounted Laser Pointer
- Laser marker which points from the side
- Bobbin Winder
- Option for HCU
- Upper Thread Holder
- No more trouble with upper thread escaping from needles
- Digital Thread Tension Control System
- The upper thread tension can be set digitally on the control panel
- 10.4 inch LCD Panel
- Optional larger monitor
- HCU’s Front Table
- Supports for tubular frames to suppress shakes
- HCU’s Border Table
- Supports for border frames to suppress shakes
- Cap Frame
- For embroidery work on caps
- One Point Frame
- For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
- Shoe Clamp
- For embroidery work on shoes
- Sock Frame
- For embroidery work on socks and other small products
HCU: 3D Foam Embroidery on Cap
