Sewing machines
EXP-9300
More comfortable and easy to use, with innovative features and high Sewing quality

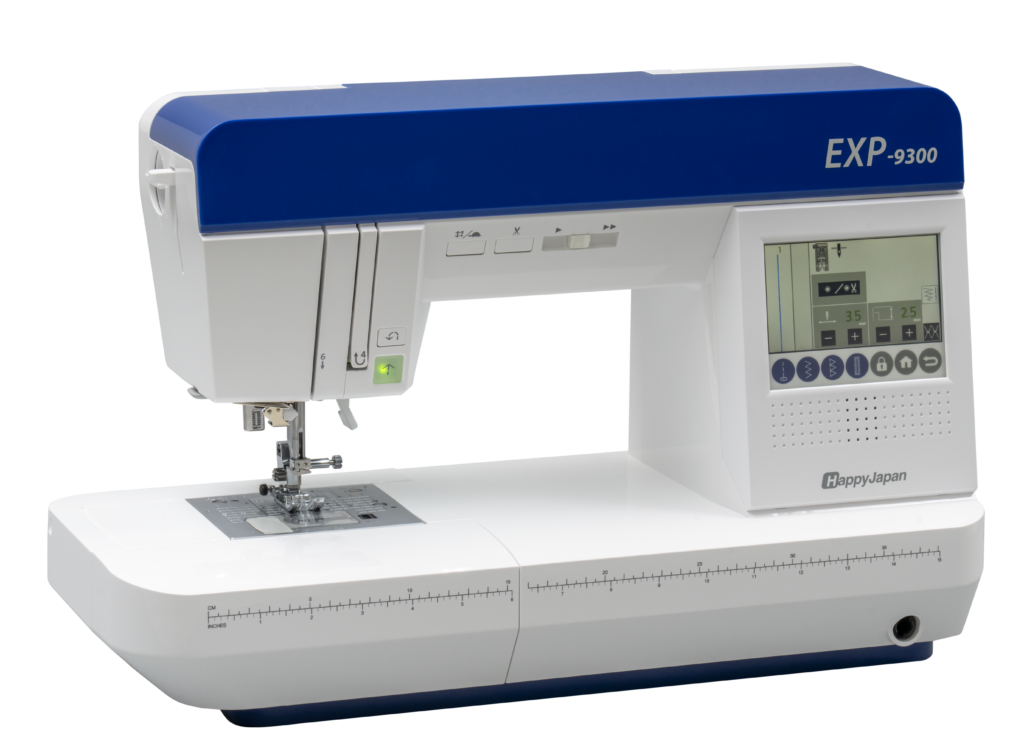

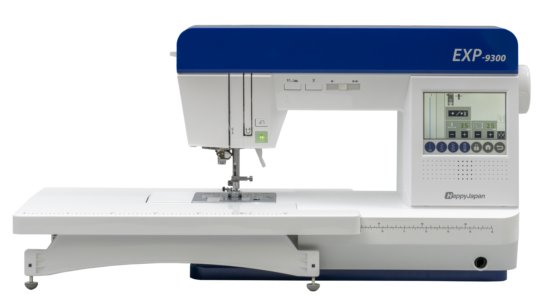

Sewing machine EXP-9300
New features EXP-9300 Sewing
Strengthening for sewing thick materials
- By strengthening internal components and improving the control program, the machine can now sew thicker materials even more effectively,
- and the sewing speed has been increased to a maximum rotation speed of 900 rpm.
Silent design sewing
- The operating noise level has been reduced from previous models, resulting in quieter operation.
Enjoy quiet and comfortable sewing.

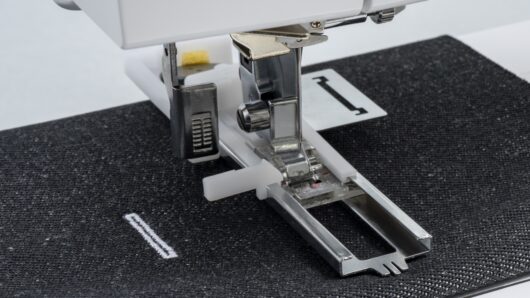

Evolved buttonholes Sewing
-
Place the button in the presser foot, and a perfectly sized buttonhole will be created automatically.
The buttonhole stitch width has been improved from a minimum of 3.5mm to 3.0mm, and the stitch length from a minimum of 0.3mm to 0.2mm.
A new buttonhole width adjustment function has also been added.
High-performance and durable design

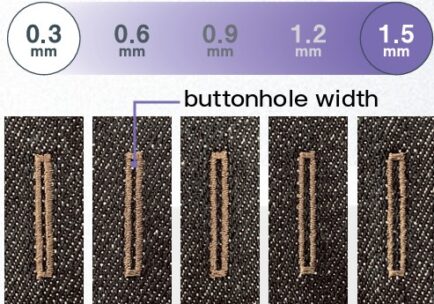

Buttonhole width adjustment
Added a new feature that allows you to adjust the buttonhole
width in five steps, from 0.3mm to 1.5mm.

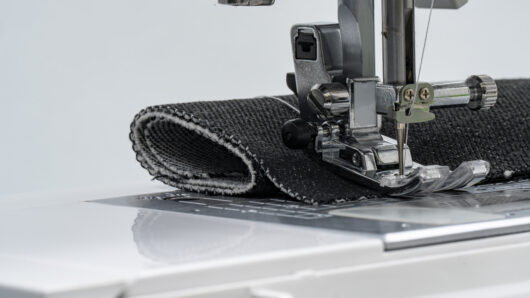

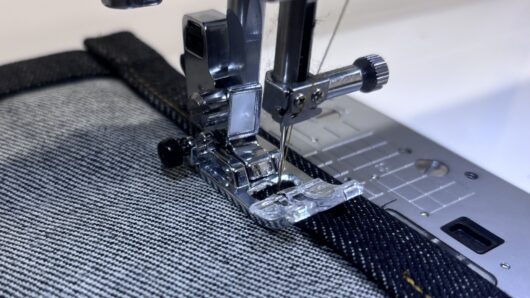

Sewing thick denim
Happy Box Feed, with its durable and precise 7-piece feed dogs,
enables smooth and beautiful stitching even on thick materials such as denim hems.
Basic functions of Sewing Machine EXP-9000
- Happy one step needle threader
- Thread up to the guide and lower the lever, get the thread through the eye of the needle. An excellent feature operated with one hand action. (* For household sewing machine needles 11 to 16)
-

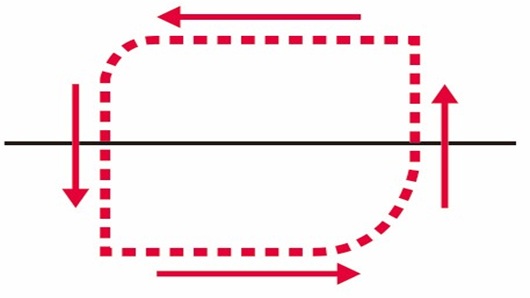

Happy box feed - Ideal sewing function for thick, thin and elastic fabrics.
By horizontal movement of the feed dog, the feed dog contacts fabrics longer time than current models, feeding thin or stretchable fabrics smoothly.

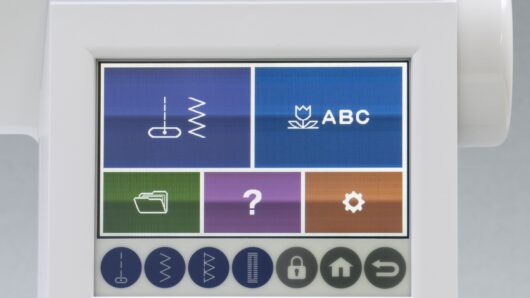

- LCD color touch screen
- Simple and visible LCD color screen, easy and excellent operability by touch screen.

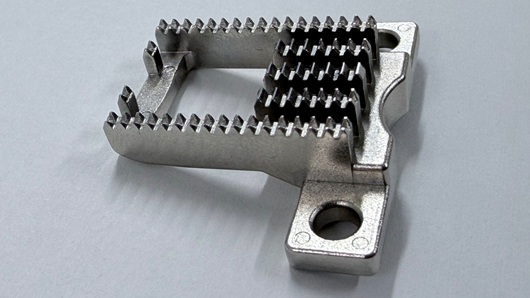

- 7 Piece feed dog
- Reducing puckering of thin fabric.
7 piece feed dog reduces slipping and puckering.
Basic functions of Sewing Machine EXP-9300
- Foot pressure adjustment
- The pressure of the presser foot can be adjusted from 5 levels according to the thickness of the fabric.
- Computerized automatic thread tension
- Adjust appropriate thread tension according to the pattern.
- Lettering stitch
- Two alphabets. Letters and your favorite patterns can be combined.
- Automatic thread cutter
- Upper and bobbin thread are cut short automatically.
- New threading system
- Just thread in numerical order regardless of needle position.
- Easy bobbin threading
- Just insert bobbin and follow the guide, it allows you to start sewing without pulling up bobbin thread.
- Easy bobbin winding
- To set up the bobbin for winding, simply insert the bobbin to the shaft, wind the thread. The motor automatically stops when winding finish.
- Lock button
- Safety function which locks the machine, replacing needle/foot safely and easily.
Comfortable functions
- Knee lifter
- Raise / lower the presser foot.

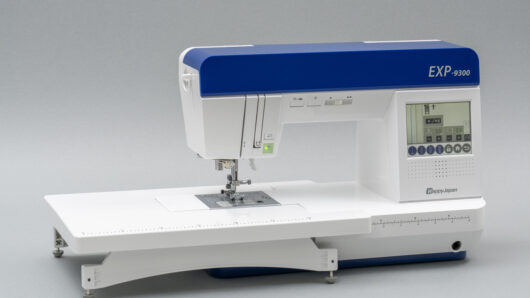

Wide extension table
Wider space makes sewing for large works easily such as curtains and quilts.
- Foot controller
- Easy start and stop operation with your foot.

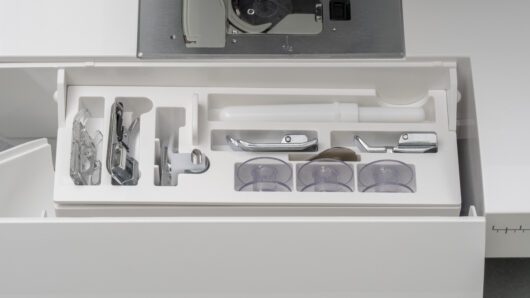

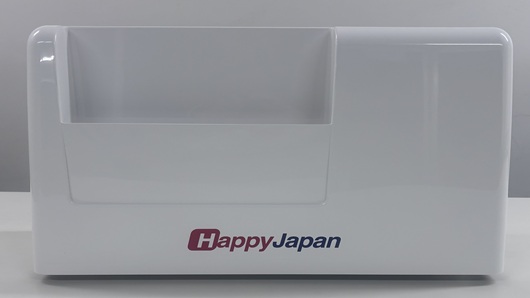

Smart accessory box
A convenient box store accessories inside the table.
Hard case
Hard case protects the machine from the dust.
Other features
| Notification lamp | Ready when the red light turns green, you can start sewing pressing the button. |
|---|---|
| Lock presser foot | Keep presser foot horizontally with a simple button operation, easy to sew even thick material. |
| Needle up-down button | The needle moves up and down by the button, convenient for square stitch and single stitch. |
| One-touch slow button | The button drop sewing speed instantly. |
| Drop feed | This function drop the feed dog with a lever, moving the fabric freely, ideal for free motion quilting. |
| LED lighting for sewing space | LED light illuminates working space around the needle. |
| Free arm | Sew tubular items like sleeves, trousers, etc. Simply remove the detachable accessory box to access the free arm. |
| Thread sensor | A safety device automatically stops machine if needle thread breaks or threading is not properly. |
| Embroidery unit | Embroidery unit is available as option. |

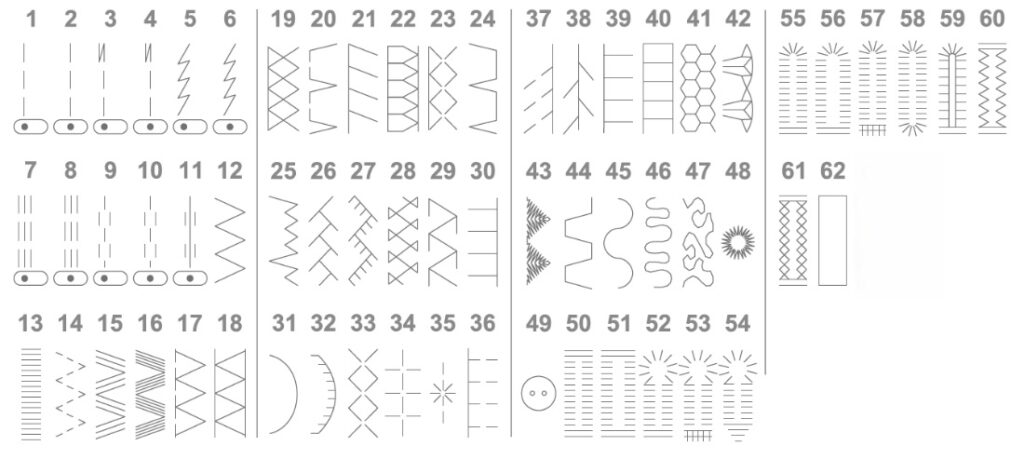

Stitch pattern List
Utility stitches
Decorative stitches
EXP Series Specification comparison
| EXP-9000 | EXP-9300 |
|---|---|
 |
 |
| Size (Main body) | |
| W475mm × D186mm × H300mm |
W475mm × D186mm × H300mm |
| Weight (Main body) | |
| 8.9kg | 8.7kg |
| Voltage | |
| AC100-240V, 50/60Hz | AC100-240V, 50/60Hz |
| Power consumption | |
| 55W | 55W |
| Pattern display | |
| LCD color screen (touch panel) | LCD color screen (touch panel) |
| Number of patterns | |
| 478 | 476 |
| Lettering Stitch | |
| Three alphabets | Three alphabets |
| Thread tension | |
| computerized | computerized |
| Automatic thread cutter | |
| Automatic | Automatic |
| Needle threader | |
| Happy one step needle threader | Happy one step needle threader |
| Easy bobbin threading | |
| ✔ | ✔ |
| Easy bobbin winding | |
| ✔ | ✔ |
| Foot pressure adjustment | |
| (5 levels) | (5 levels) |
| Elongator | |
| ✔ | ✔ |
| Mirror image | |
| ✔ | ✔ |
| Lock button | |
| ✔ | ✔ |
| Drop feed | |
| ✔ | ✔ |
| Knee lifter | |
| ✔ | ✔ |
| Machine cover | |
| Hard case | Hard case |
| Foot controller | |
| ✔ | ✔ |
| Wide extension table | |
| ✔ | ✔ |
Options
- Walking foot
- Quilting foot
- Parallel foot
- Piecing foot
- Shirring foot
