Expansion Ink Printing

2.5D printing on media without patterning mask

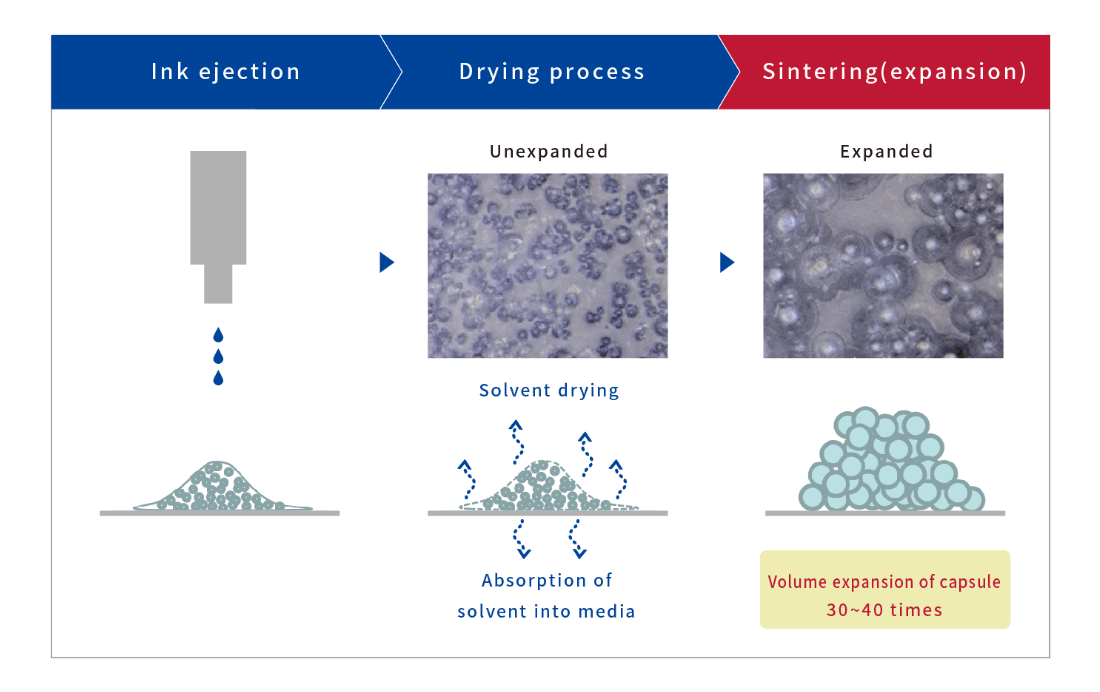

Apply ink with dispersed microcapsules. After landing, it undergoes a drying process and sintering at around 100 ° C to expand the microcapsules and realize a 2.5D shape.

Features of Happy Japan expansion ink printing

Happy Japan expansion ink printing is on-demand digital printing, so it is ideal for 2.5D printing that requires flexible support as well as small-quantity printing.

What is on-demand expansion ink printing?

It is a 2.5D printing technology that can print expansion ink on any place. By heating after printing, the ink expands and realizes a 2.5D shape.

Depending on the ink composition and sintering conditions, it is possible to add functionality such as friction resistance and elasticity. The shape and hardness are devised according to the application, and it is expected to be used in various fields depending on the idea.

Apply exactly to the target position
Enables expansion ink printing, which was not possible with inkjet!
Form a solid with a small amount of ink
One-shot 2.5D formation without recoating with a small amount of ink!
Color and hardness as you like
Flexible support according to your needs and applications, such as hardness and adhesion to the objects.
Odorless and harmless water-based ink
The main component is water-safe water-based ink, which is almost odorless. There is no worry about the bad effects on the human body.

Ink ejection control technology

With inkjet technology, the movement of paper and the timing of ink ejection are delicately controlled, and the appropriate amount of ink is controlled to drip from the head ejection port to the target position. The shape and height of the vertical cross section of the dots, such as mountain-shaped and cylindrical, can be adjusted according to the customer’s request and application.

Main adjustment items

  • dot pitch
  • dot diameter
  • dot height
  • shape of vertical section
  • object characteristics
  • object size

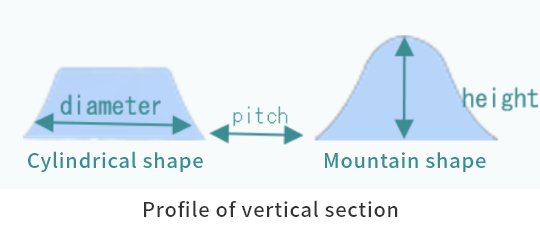

Profile of vertical section

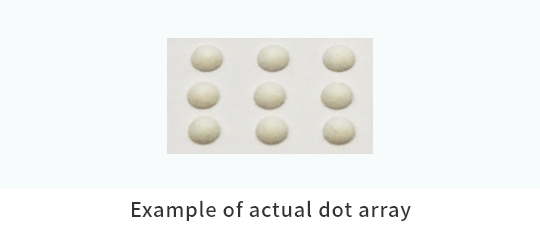

Example of actual dot array

Ink formulation technology

For expansion ink printing, we use a unique low-viscosity water-based ink optimized for inkjet (uniformly and stably dispersed hydrophobic microcapsules with an average particle size of 10 μm and a specific gravity of 1.2).

Depending on the customer’s application, the hardness that demonstrates functionality and the adhesion to the corresponding object can be adjusted.

Applications examples of expansion ink printing

Please tell us your ideas. Our staff with high technology and abundant experience will do our utmost to help you realize your ideals.

As a tactile identification display
For universal design to improve users convenience.
As a cushioning material
For protection of important products with elastic and moderate cushioning.
As slip-proof
It has a potential for anti-vibration and soundproofing effects besides anti-slip.

Applicable media

  • Various types of paper
  • Non-woven materials
  • Plastic film (excluding some films)

…etc.

Fusion with Factory Automation Technology

Our proprietary IJ system and ink can be customized to FA equipment that meets our customers’ needs of. By fusing with FA technology cultivated for many years, we provide one-stop support from concept design to manufacturing assembly and after-sales services.

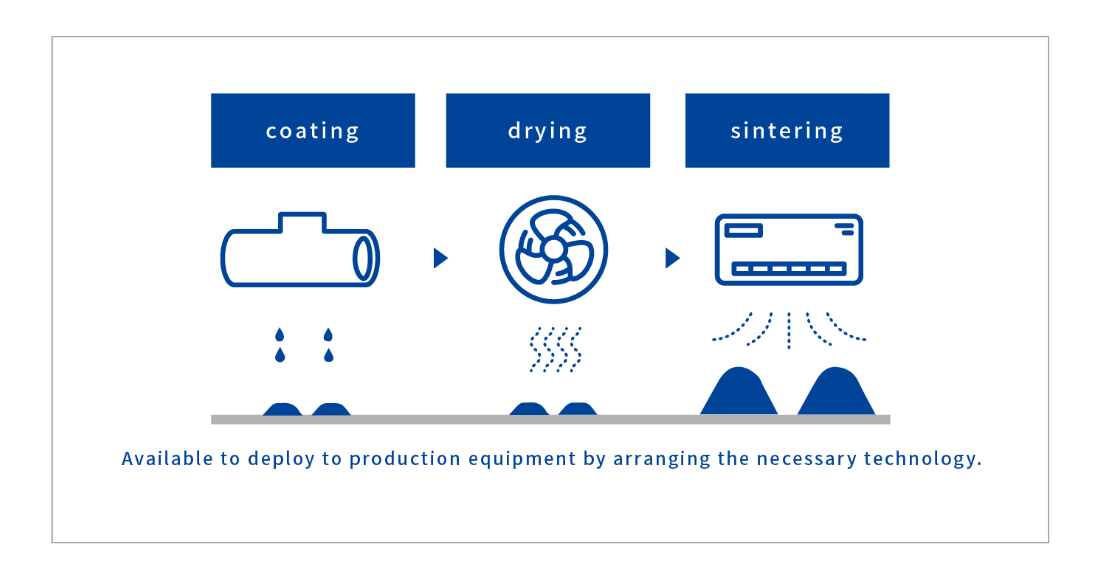

Available to deploy to production equipment by arranging the necessary technology.

FA equipment (industrial equipment)
