HCD3E-1501-40 (Heavy-duty Industrial)
Industrial Embroidery machine HCD3E-1501-40
HappyJapan’s best capable heavy-duty single head model
The 15 needle single head-cylinder type embroidery machine HCD3E is HappyJapan’s long established heavy-duty single head with the large sewing area, durable drive system and speedy performances.
HCD3E is able to deal with wide range of garments from delicate to thick and heavy.
Having iron die-cast arms and the body as one unit makes it strong and stable, promising high quality sewing.
All HappyJapan embroidery machines are made in Japan.
Specification Embroidery machine HCD3E-1501-40
| Number of Needle | 15 |
|---|---|
| Number of Head | 1 |
| Maximum Speed: Tubular | 1,200rpm |
| Maximum Speed: Cap | 1,000rpm |
| Maximum Embroidery Field (X-Y) | 400 x 520mm / Option: 400 x 1,200mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 100milion stitches / 3,000designs |
| Power Supply | Single Phase 100-120V 200-240V |
General Features Embroidery machine HCD3E-1501-40
Automatic Thread Trimer |
Yes |
|---|---|
Automatic Thread Break Detection |
Yes |
Built-in Bobbin Thread Winder |
Option |
LCD Touch Screen Control Panel |
7 inch/ Option: 10.4 inch |
Laser Position Marker |
Option |
| Direct PC Connection | USB/LAN |
PC Communication Software |
Yes |
12 Fonts 6 Sizes Lettering |
Yes |
Built-in 100 One-point Designs |
Yes |
Embroidery Pattern Loading |
USB Pen Drive |
Options
- Bobbin Winder
- Option for HCD3E

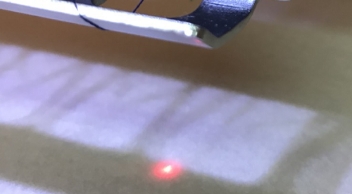

- Position Laser Marker
- No more hitting frames
- Upper Thread Holder
- No more trouble with upper thread escaping from needles
- 10.4 inch Display Monitor
- Optional larger monitor
- Expand Carriage Wide Border Frame
- Wide range up to 400 x 1,200mm field

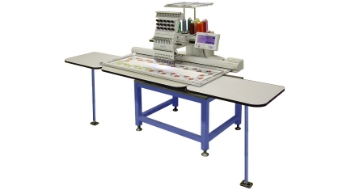

- Expand Side Table set
- Side table for expand carriage

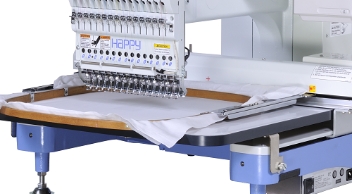

- Front Table
- Supports for tubular frames to suppress shakes

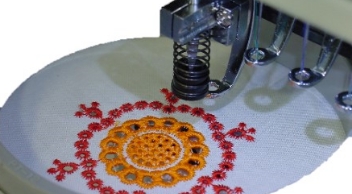

- Borer Device
- Hollowing out garments for lace embroidery etc.

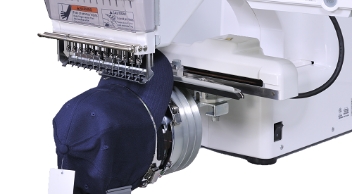

- Cap Frame
- For embroidery work on caps

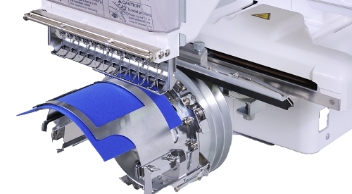

- One Point Frame
- For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.

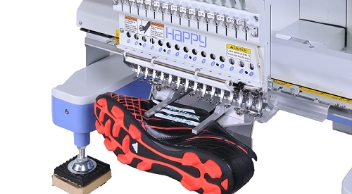

- Shoe Clamp
- For embroidery work on shoes

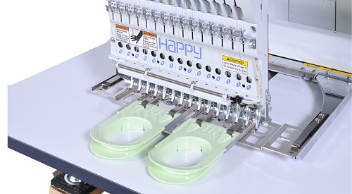

- Sock Frame
- For embroidery work on socks and other small products

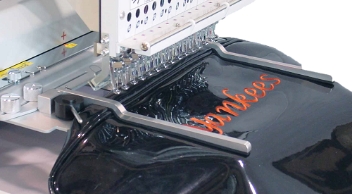

- Side Clamp
- For embroidery work on heavy material like bags, leather etc.

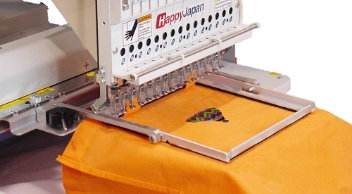

- Manual Clamp
- For heavy or delicate material without leaving wrinkle or marks on materials

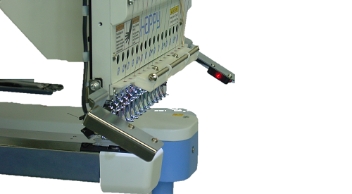

- Safety Front Sensor
- For avoidance to get injuries by accidentally touching working machines
- Tubular Preparation Table
- Useful to set finished products like T-shirts for tubular frames

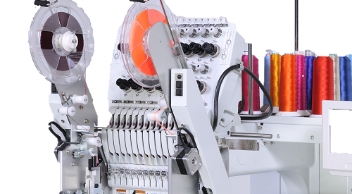

- Sequin & Zigzag Cording
- For additional decorations on embroideries
