Embroidery Machines
HCH-701-30 (Entry model)
Embroidery machine HCH-701-30
Fine entry model with necessary functions
HCH is the 7 needle auto color change compact size single head embroidery machine for entry level embroiderers and shops.
Same as other models, HCH also comes with a whole package of lucrative features – Position laser marker, Bobbin thread winder, popular size standard hoops and variety optional attachments. Since there are no legs in the front part, the space around the cylinder bed is wide, and embroidery on large items is possible.
Its user friendly control panel is easy to operate and in-depth useful functions are the very proof of “Japanese-style” attentiveness. Now HCH is ready to work for you.
Key Features
Easy threading
LCD Touch Screen Controller
PC Connection : LAN/USB
Bobbin Winder
Pattern Edit & Transfer Software
HAPPY LINK/LAN
USB Port ：USB Memory
Specification Embroidery Machine HCH-701-30
| Number of Needle | 7 |
|---|---|
| Number of Head | 1 |
| Maximum Speed: Tubular | 1,000rpm |
| Maximum Speed: Cap | 600rpm |
| Maximum Embroidery Field (X-Y) | 285 x 290mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 100milion stitches / 3,000 designs |
| Power Supply | Single Phase 100-120V 200-240V |
General Features Embroidery Machine HCH-701-30
| Automatic Thread Trimer | Yes |
|---|---|
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Yes |
| LCD Touch Screen Control Panel | Yes |
| Laser Position Marker | Yes |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
Options

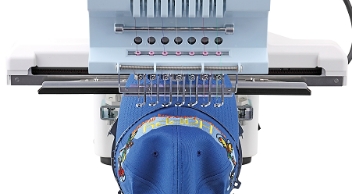

- Cap Frame
- For work on caps

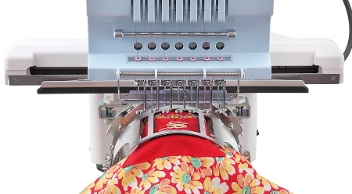

- One Point Frame
- For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
- Shoe Clamp
- For embroidery work on shoes

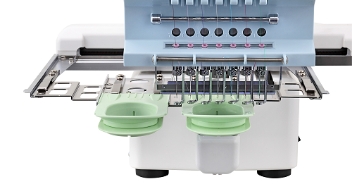

- Sock Frame
- For embroidery work on socks and other small products

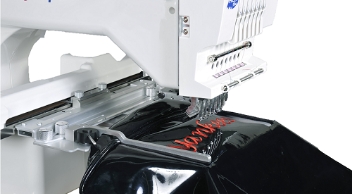

- Side Clamp
- For embroidery work on heavy material like bags, leather etc.

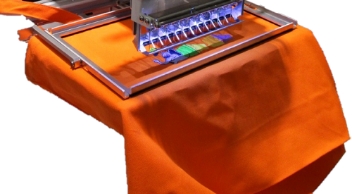

- Manual Clamp
- For heavy or delicate material without leaving wrinkle or marks on materials
- Front Table (Option: Long Table legs)
- Supports for tubular frames

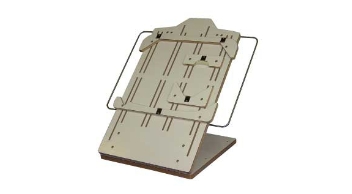

- Tubular Preparation Table
- Useful to set finished products like T-shirts for tubular frames

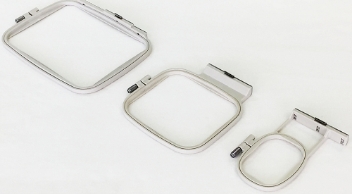

- One Touch Frame
- Setting and detaching the frame are easily in one step
