Embroidery Machines

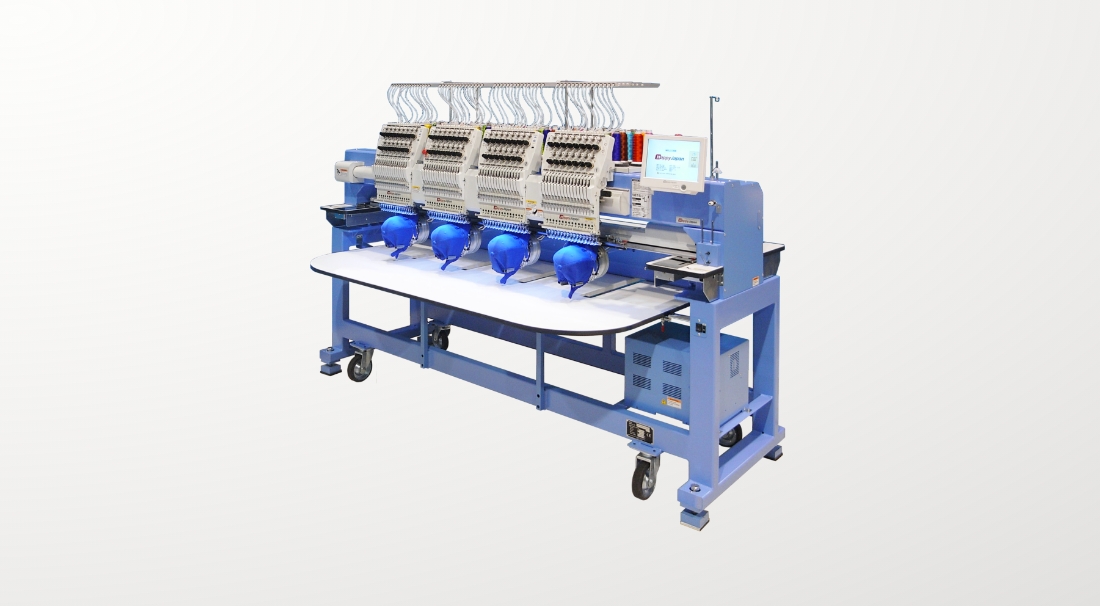

HCR3E Series (Multi-head)
Economy type model of HCR3 series
An economy model of HCR3, named HCR3E, is available with its range of 2 heads up to 8 heads embroidery machine.
X series for wider embroidery area (Width:500mm) is available for 4 and 6 heads.
Same machine body and carriages design as HCR3 , so ensure to eliminate noise and vibration, producing high quality embroidery.
With all the time Happy’s user-friendly control panel and all HCR3 options addable, this model is absolutely an alternative choice.
All HappyJapan embroidery machines are made in Japan.
Specification
| Number of Needle | 15 |
|---|---|
| Number of Head | 2-8 |
| Maximum Speed: Tubular | 1,000 – 1,100rpm |
| Maximum Speed: Cap | 850rpm |
| Maximum Embroidery Field (X-Y) | 450 x 360 or 450 x 500mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 40million stitches / 999 designs |
| Power Supply | Single Phase 200-240V |
General Features
| Automatic Thread Trimer | Yes |
|---|---|
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Option |
| LCD Touch Screen Control Panel | 7 inch / Option: 10.4 inch |
| Laser Position Marker | Option |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
HCR3e Series Specifications (more details)
Options

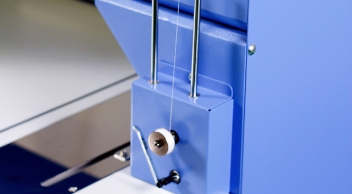

- Bobbin Winder
- Option for HCR series

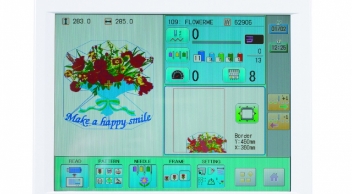

- 10.4 inch Display Monitor
- Optional larger monitor
- Upper Thread Holder
- No more trouble with upper thread escaping from needles

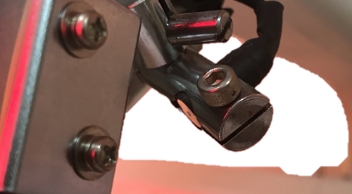

- Laser Position Marker
- No more hitting frames
- Safety Sensor Front & Rear
- For avoidance to get injuries by accidentally touching working machines

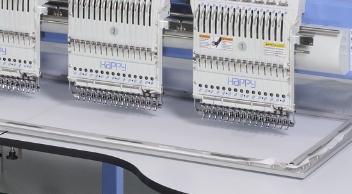

- Border Frame
- For embroidery work on original fabrics
- Cap Frame
- For embroidery work on caps
- One Point Frame (long type)
- For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
- Sequin & Zigzag Cording
- For additional decorations on embroideries

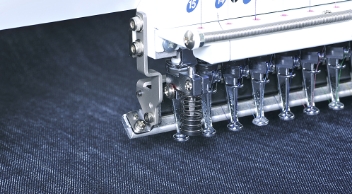

- Borer Device
- Hollowing out garments for lace embroidery etc.
- Spider Frame
- Option for HCR series
- Round Frame

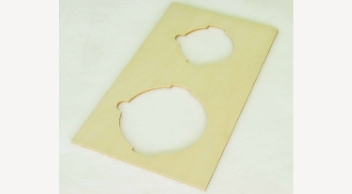

Preparation Base - Preparation base to reduce clumsiness for round frames
