Embroidery Machines

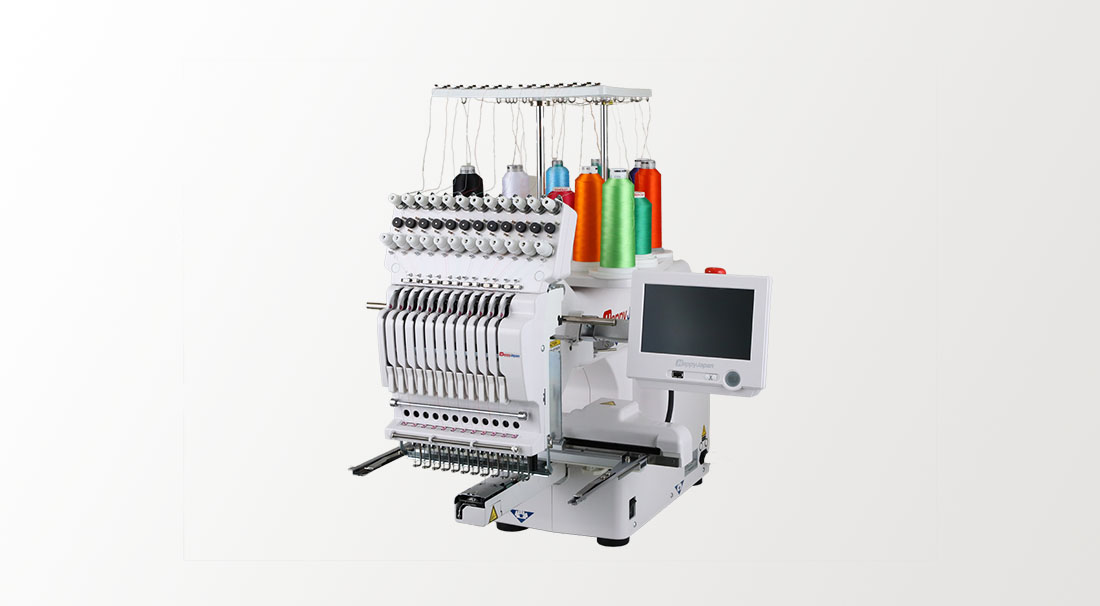

HCS3-1201-30 (Industrial)
Professional model suitable for industrial use with 12 needles
The 12-needle single head embroidery machine HCS3 is the successor model of HCS2, which is as compact as HCH series.
But comes with heavy-duty drive systems and additional needles. The user friendly touchscreen control panel and compact body produce powerful performance with suppressed noise.
With all standard and optional major attachments, HCS is Happy’s long established model, providing high-quality work.

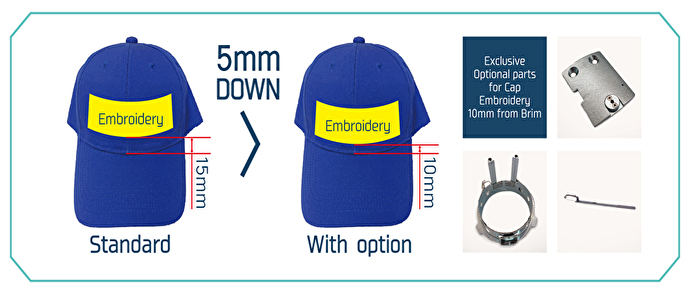

Cap Embroidery 10mm from Brim embroidery
Optional parts allow embroidery position 10mm from cap brim.

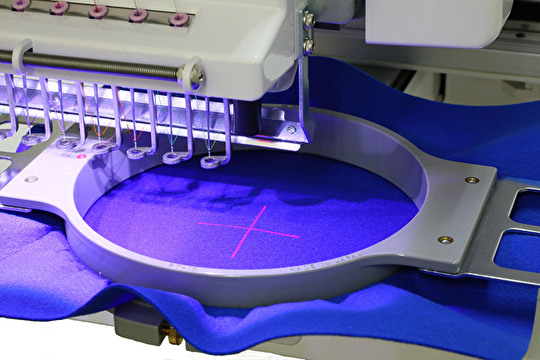

Vertical Laser Pointer for Embroidery
The dot laser marker, which was previously an option, is standard equipment, and it enables to irradiate directly from above by installing it on the 0th needle.It’s no longer necessary to adjust according to the thickness of the materials.
It can be changed to a cross laser as an option

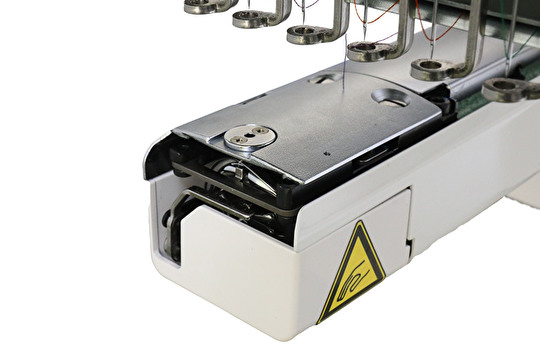

Compact Cylinder Bed for Embroidery

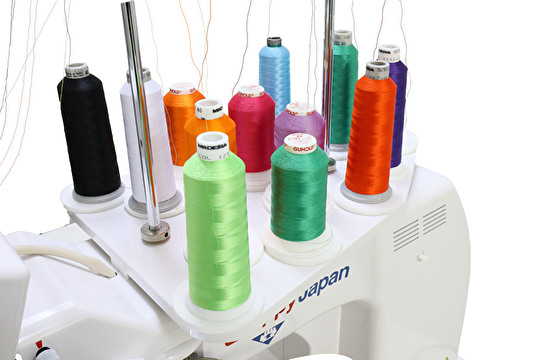

The smaller cross-section of the cylinder bed enables to make embroidery on thinner things like sleeves of shirts.Bigger upper thread cone can be used
Upper thread cone with a diameter of 80mm can be set up, though only upper thread cone with a diameter of 60mm could be used previously.
Specification
| Number of Needle | 12 |
|---|---|
| Number of Head | 1 |
| Maximum Speed: Tubular | 1,000rpm |
| Maximum Speed: Cap | 850rpm |
| Maximum Embroidery Field (X-Y) | 285 x 290mm |
| Stitch Length | 0.1-12.7mm |
| Memory | 100 million stitches / 3,000 designs |
| Power Supply | Single phase 100-120 200-240V |
General Features
| Automatic Thread Trimer | Yes |
|---|---|
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Yes |
| LCD Touch Screen Control Panel | Yes |
| Laser Position Marker | Dot marker / Option: Cross type marker |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
Options
- Cross Type Marker
- For confirmation of material fixed horizontally to frames

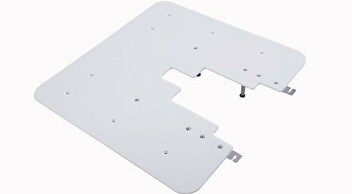

- Front Table
- Support for tubular and border frames

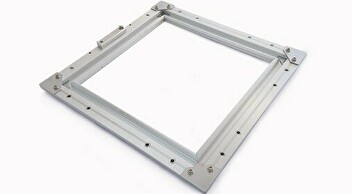

Border Frame- Option for HCS3
- USB Wi-Fi Dongle
- For wireless connection to PC
- Cap Frame
- For embroidery work on caps
- One Point Frame
- For one point work on shirts, bags, pants’ and shirts’ pockets etc.
- Shoe Clamp
- For embroidery work on shoes
- Sock Frame
- For embroidery work on socks and other small products
