Embroidery Machines
HCT Series (Multi-Head Cylinder type)
FOR HIGH USABILITY AND HIGH PERFORMANCE

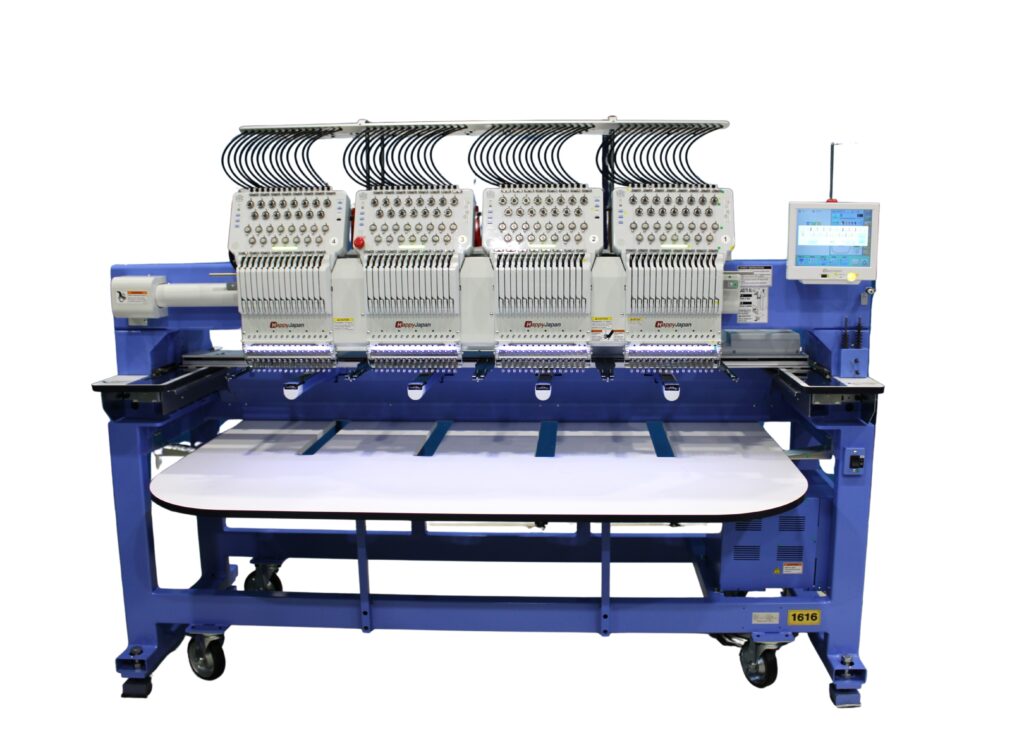

HAPPYJAPAN’S FLAGSHIP INDUSTRIAL MULTI-HEAD EMBROIDERY MACHINE

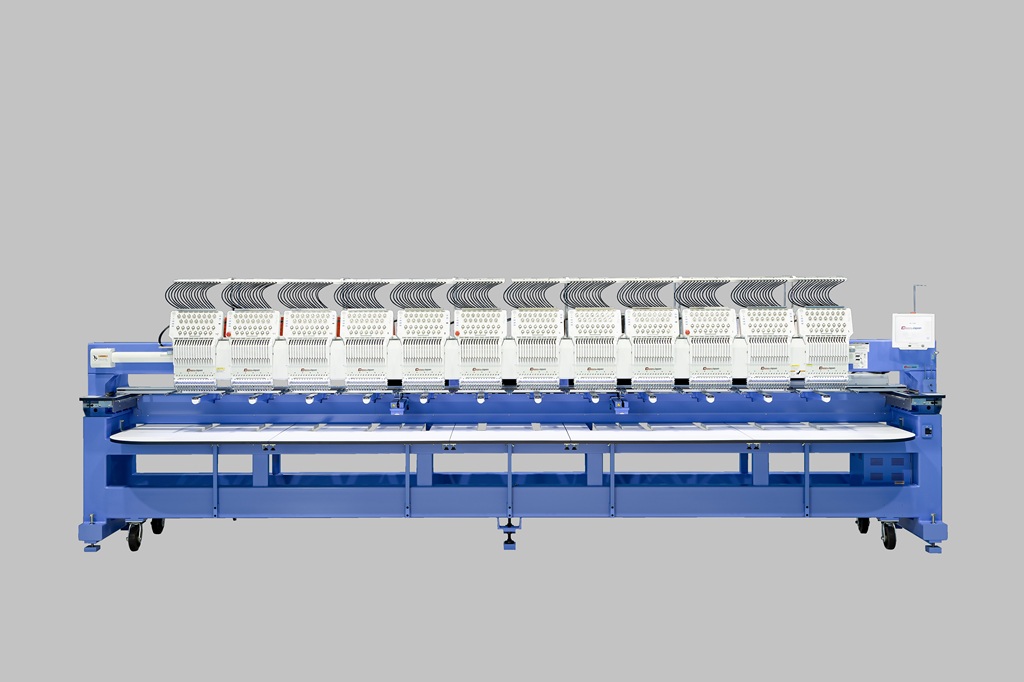

The new HCT series of multi-head cylinder-type embroidery machine is available with 2 to 12 heads. Equipped with a new 15-needle moving head, the HCT meets a wide range of needs, offering an embroidery field of 450 x 360 mm or450 x 500 mm.
Additionally , The newly developed small cylinder enables embroidery in narrow areas, such as the bottom of a pocket. This flagship model has evolved in terms of ease of use, achieving stable, high-quality stitching through digitalization, simplified threading, greater quietness and a keeperless design.
Key Feature : HCT series Embroidery
Productivity ＆ Usability Enhancement

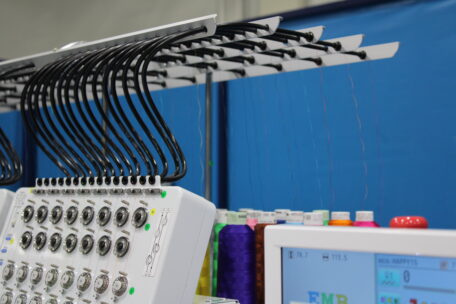

Silent Design
The introduction of new technology has reduced noise
during work and improved the working environment.

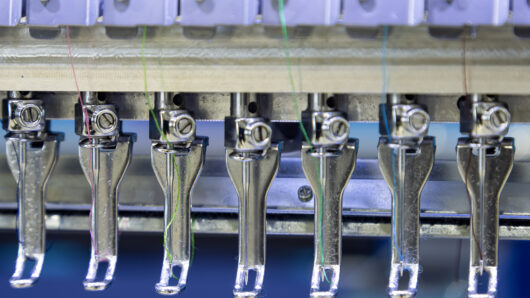

Enhanced threading
Reducing two threading steps which helps enhance workability,
In addition ,new presser foot has vertical hole in the back, making threading easier and enhance work efficiency.

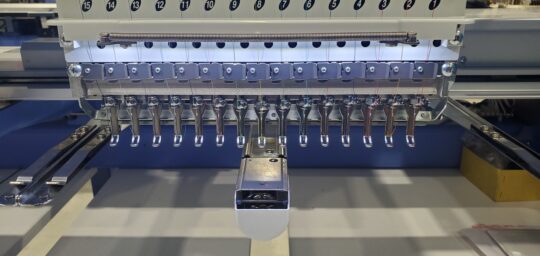

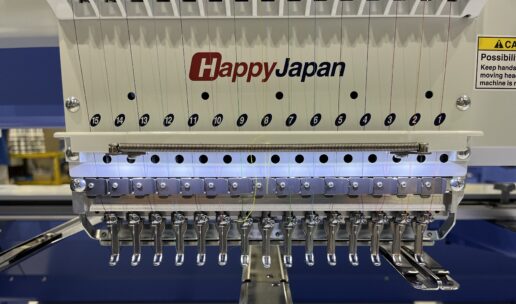

Direct moving head
Smooth X-axis movement of the moving head
which enables the needle bar switching at double speed.
Reducing interference with flat brim cap
The shape of thread catcher part has been upgraded. This produces easier embroidering on flat brim cap.

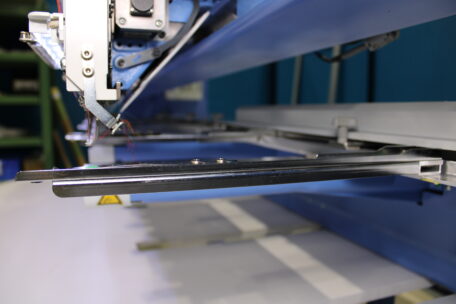

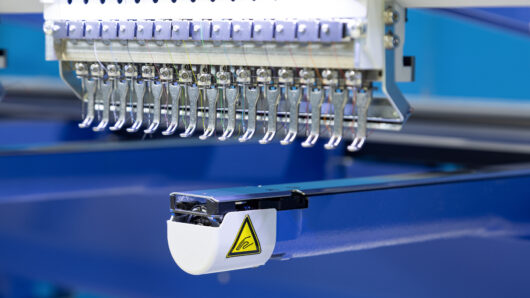

Smaller cylinder arm without keeper
The new cylinder arm is much smaller than the current model. This enables to make embroidery on thinner tubes such as shirt sleeve or pocket and thread change smoothly with cylinder arm which has no keeper.
Shortens remaining thread embroidery
Remaining thread length on the back of the fabric has been shortened by 75%.

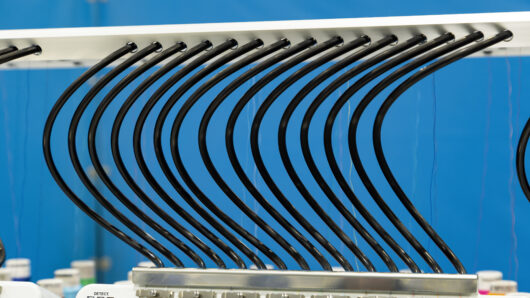

Simplified upper thread feeding embroidery
A stylish black antistatic tube is used in the upper thread feed section. The tube is connected directly above the upper thread cone, allowing the upper thread to be supplied to the thread tension section by air.
High Performance , High Quality and Stable Embroidery
Automatic material thickness detection system/
Digital presser foot system (Option)
The machine automatically sets the presser foot height, the presser foot height can be digitally adjusted, and this provides stable embroidery availability for any operator.
Digital thread tension control system （Option） embroidery
Upper thread tension setting can be digitally saved, and it helps providing stable embroidery availability for any operator.
Durability Enhancement

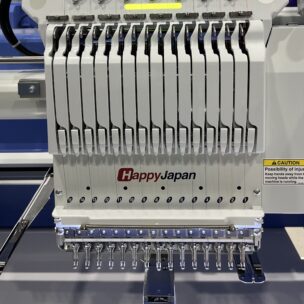

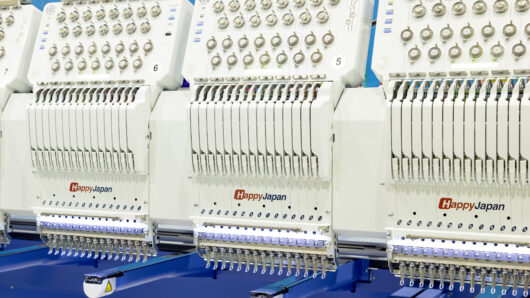

New durable enforced head
The new method with reinforced internal structure has been adopted for the head, improving durability.
New thickened frame connecting plate
The frame connecting plates have been updated thicker to increase durability and reduce vibration.

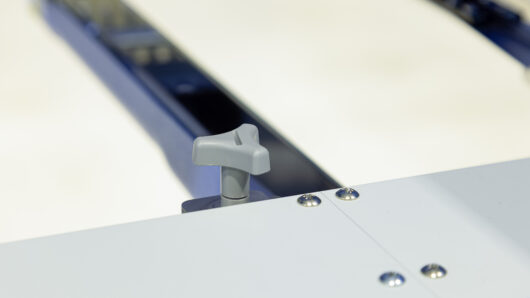

Original knobs for frame mounting
Made in Japan
All Happy Japan embroidery machines are manufactured in Japan.
Specification HCT series embroidery e
| Number of Needle | 15 |
|---|---|
| Number of Head |
Normal:2,4,6,8,12Heads Wide:4,6,8 Heads |
| Maximum Speed: Tubular | 1,000-1,200rpm |
| Maximum Speed: Cap | 1,000rpm |
| Maximum Embroidery Field (X-Y) | 450 x 360 or 450 x 500mm(Wide) |
| Stitch Length | 0.1-12.7mm |
| Memory | 100milion stitches / 3,000 design |
| Power Supply | Single Phase 200-240V |
General Features HCT series
| Automatic Thread Trimer | Yes |
|---|---|
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Option |
| LCD Touch Screen Control Panel | Yes |
| Laser Position Marker | Option: Dot Pointer |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
Options

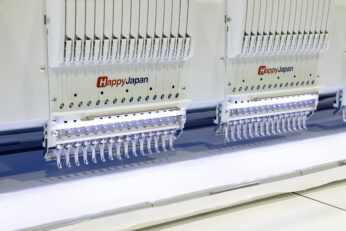

- Border Frame
- For work on original fabrics

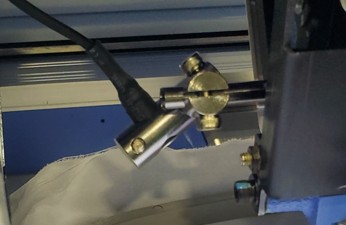

- Side-mounted Laser Pointer
- Laser marker which points from the side
- Bobbin Winder
- Option for HCT

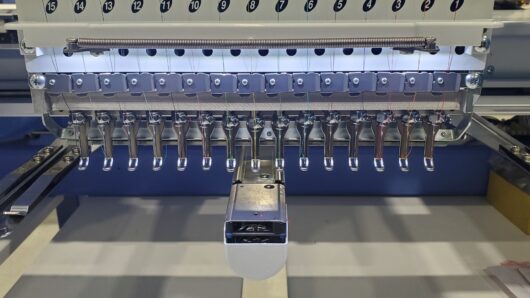

- Clip Holder
- No more trouble with upper thread escaping from needles
- Digital Thread Tension Control System
- The upper thread tension can be set digitally on the control panel
Automatic material thickness detection system/digital presser foot system This digital controlling system makes presser foots enabling a height adjustment by the touch control panel.
- Cap Frame
- For embroidery work on caps
- One Point Frame
- For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
- Shoe Clamp
- For embroidery work on shoes
- Sock Frame
- For embroidery work on socks and other small products
